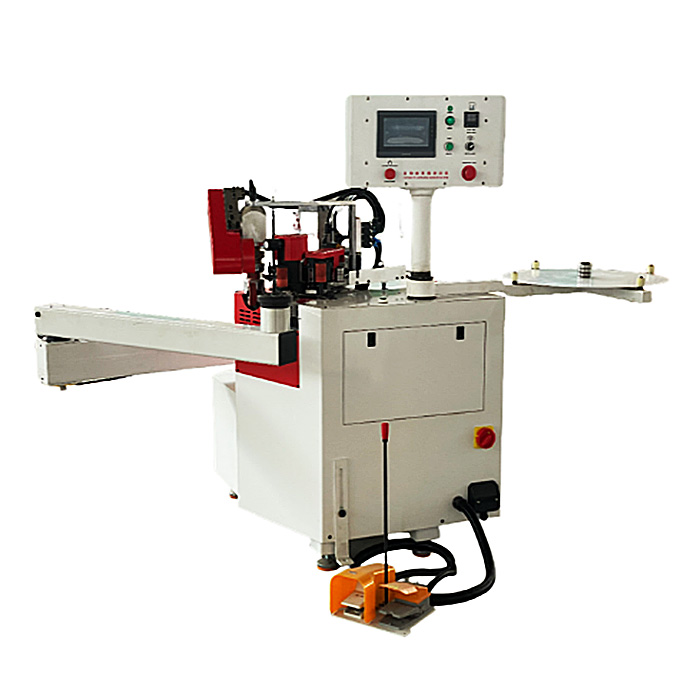

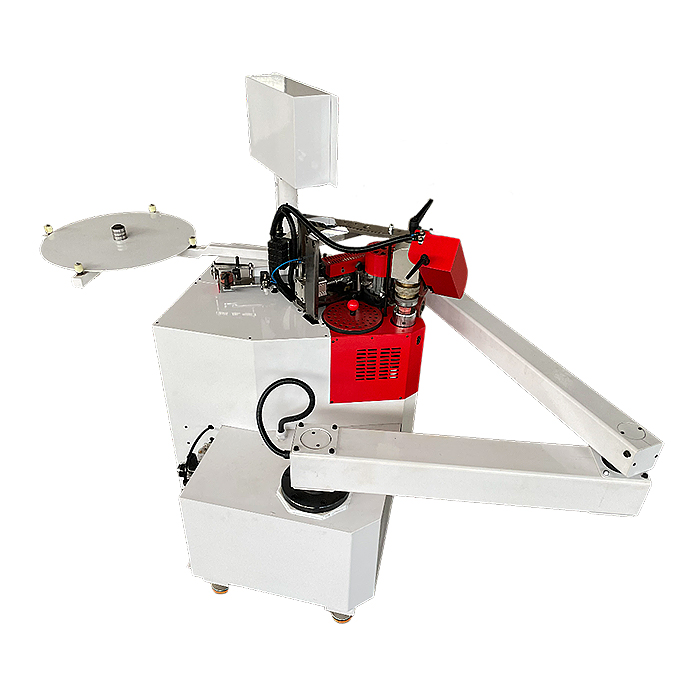

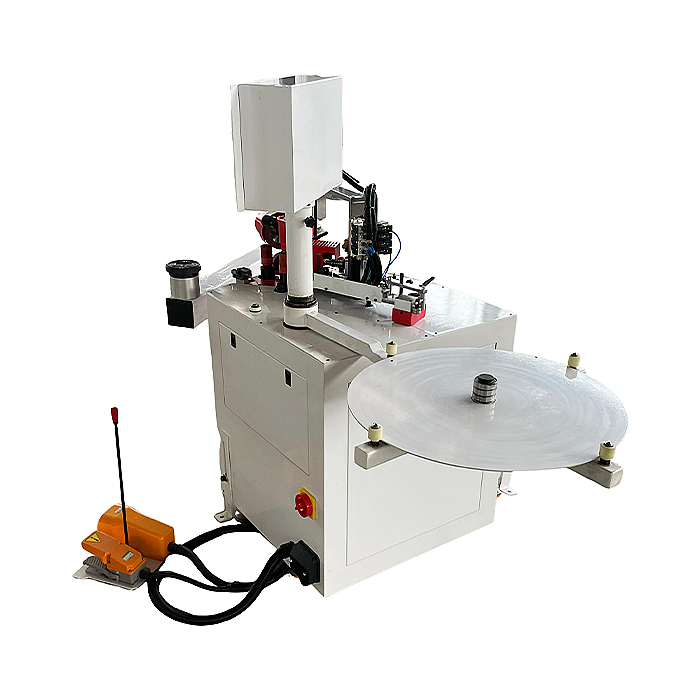

Focusing on edge banding of irregular wooden boards, tailor-made for customers with edge banding needs
|
Product parameters
Model
XHW-800
Thickness of edge banding board
9mm~50mm
Voltage
380V（Three Fire wires+One Zero Line)50HZ~60HZ
Edge banding thickness
0.6mm~3mm
Pressure
0.6Mpa~0.8Mpa
Edge sealing speed
5M~8M/min
Maximum installed power
4KW
Hot melt adhesive
High/Medium/Low Temperature
P.S:We can customize a upper glue pot for you to connect with a PUR glue machine
Glue pot capacity
1.5KG
Edge banding material
PVC,ABS,Melamine,Customized wooden veneer
Temperature for using the glue pot
80℃~220℃
Maximum edge size
1.2M×2.4M
Operating System PLC
Display Control
Minimum edge size
200mm×300mm
Docking control system
OMRON
Packaging size
1.5M×1.2M×1.6M
One 0.75KW（Sanmen Taili）
weight
520KG
