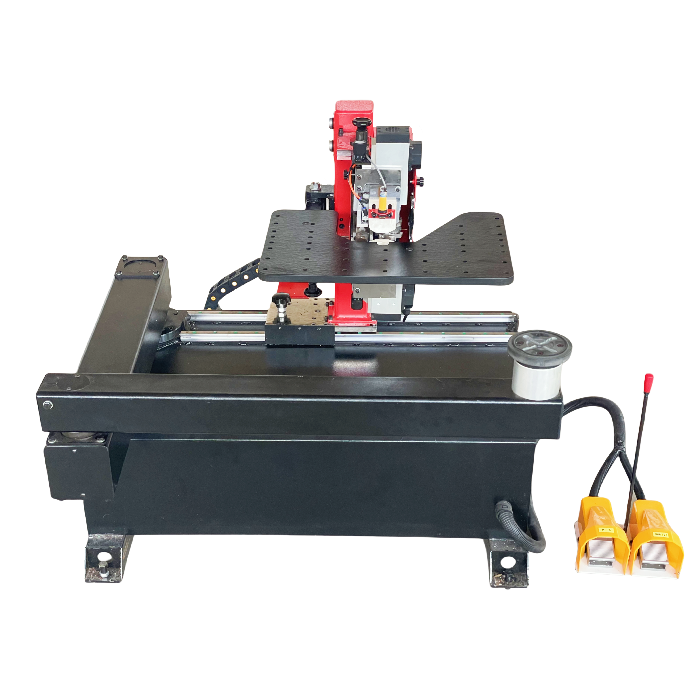

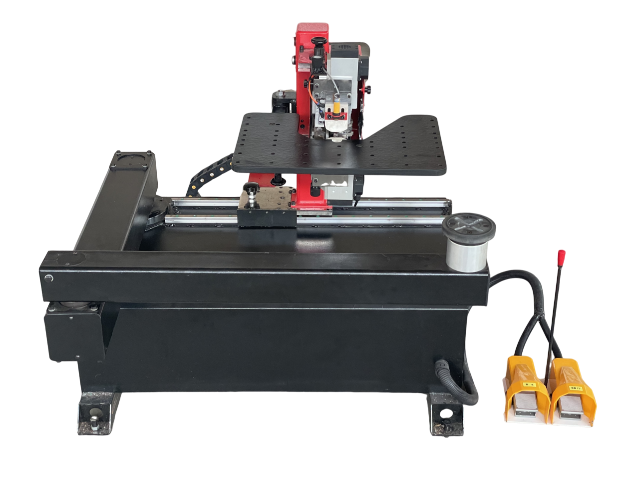

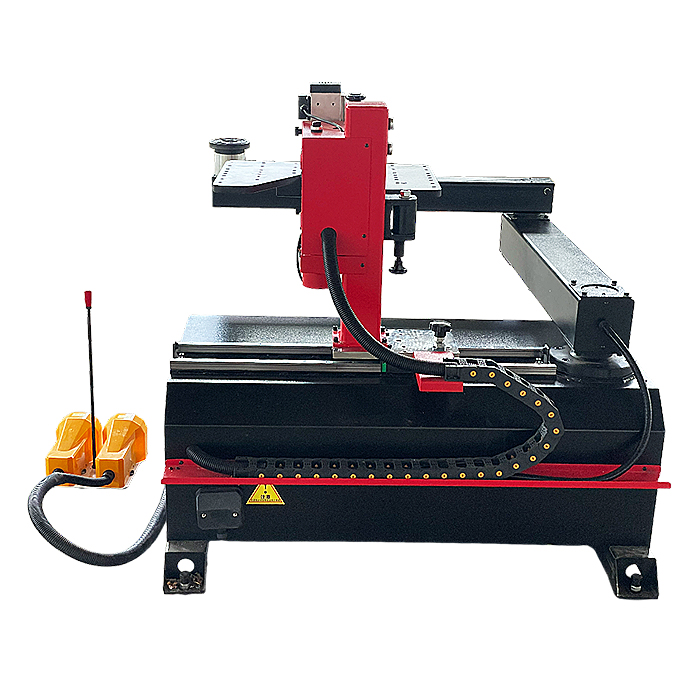

XHW-10 Curved and straight special-shaped trimming machine

Availability:
Quantity:
Inquire Add to Basket

Woodworking Cutting Machine
More >>
Sliding Table Saw
More >>
Sander
More >>
Product Description




|

 Product introduction

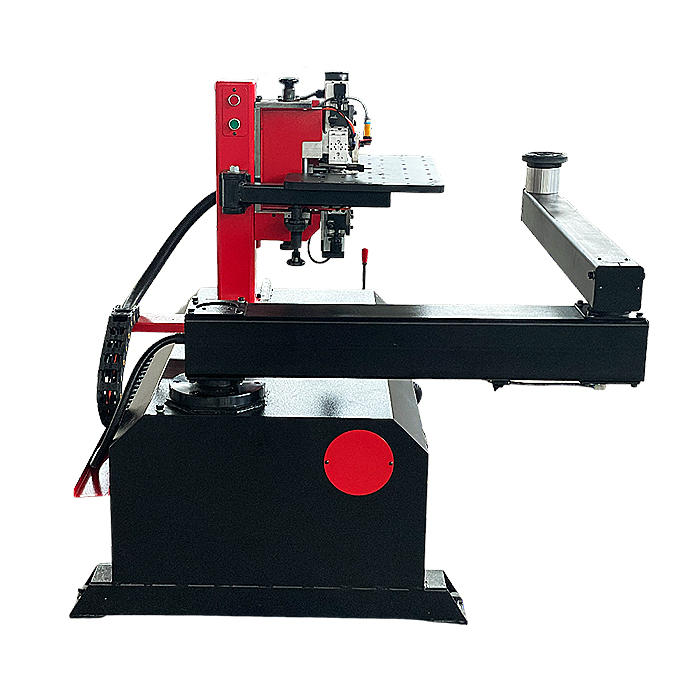

Rocker arm design

The equipment is specially designed for trimming of profiled plates

|

 Product use

For trimming of special-shaped, curved and straight plates

|

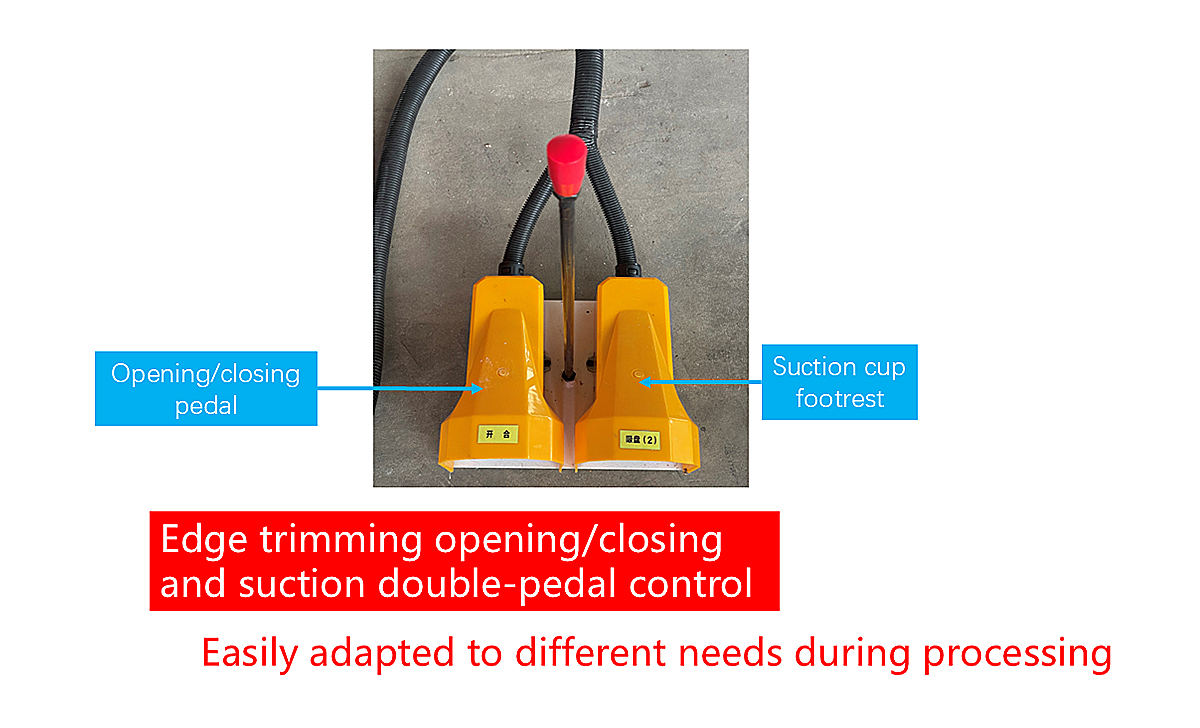

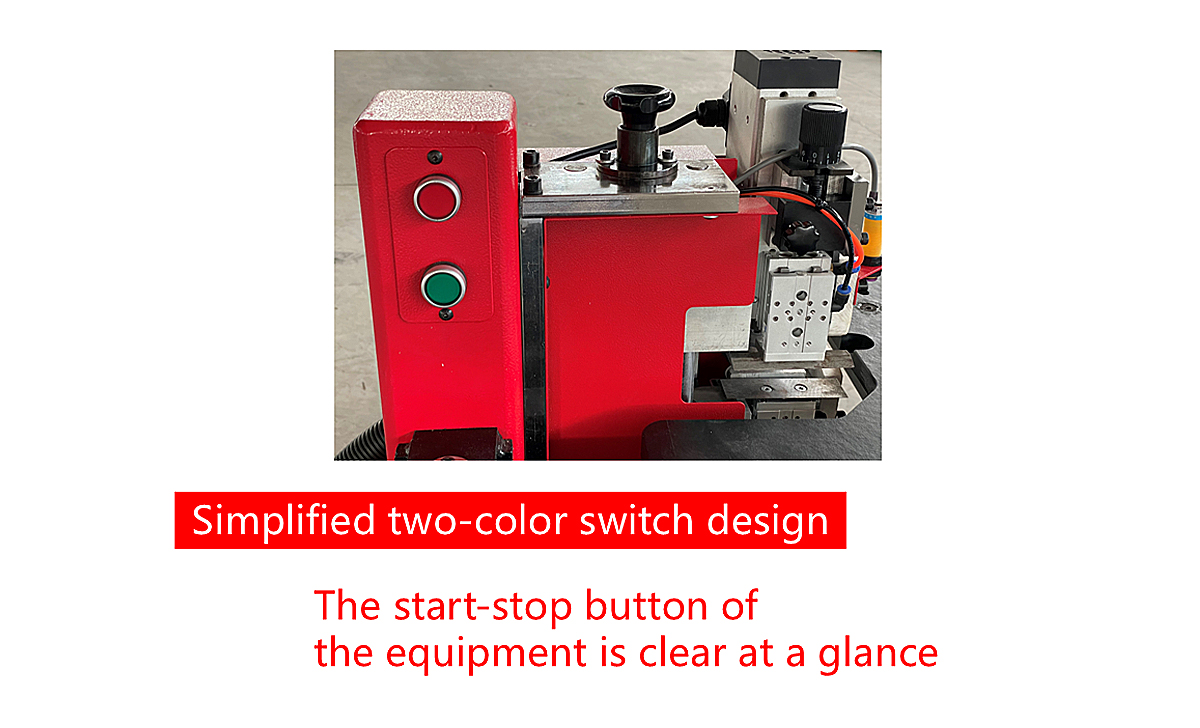

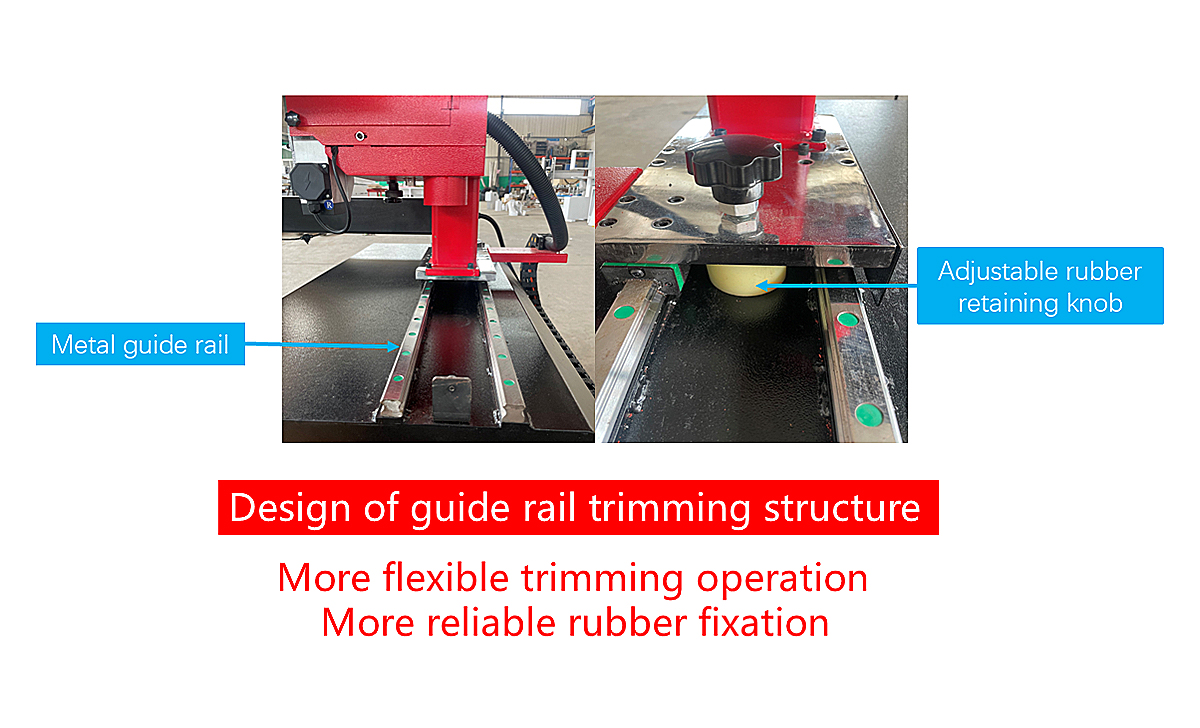

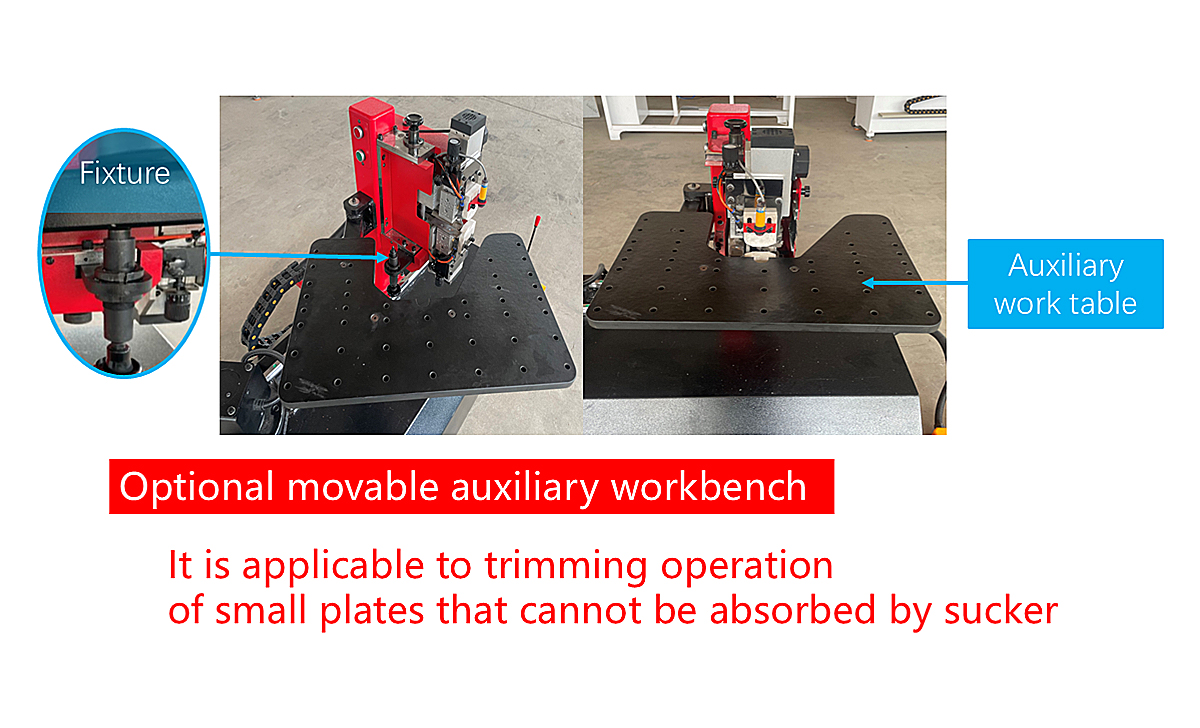

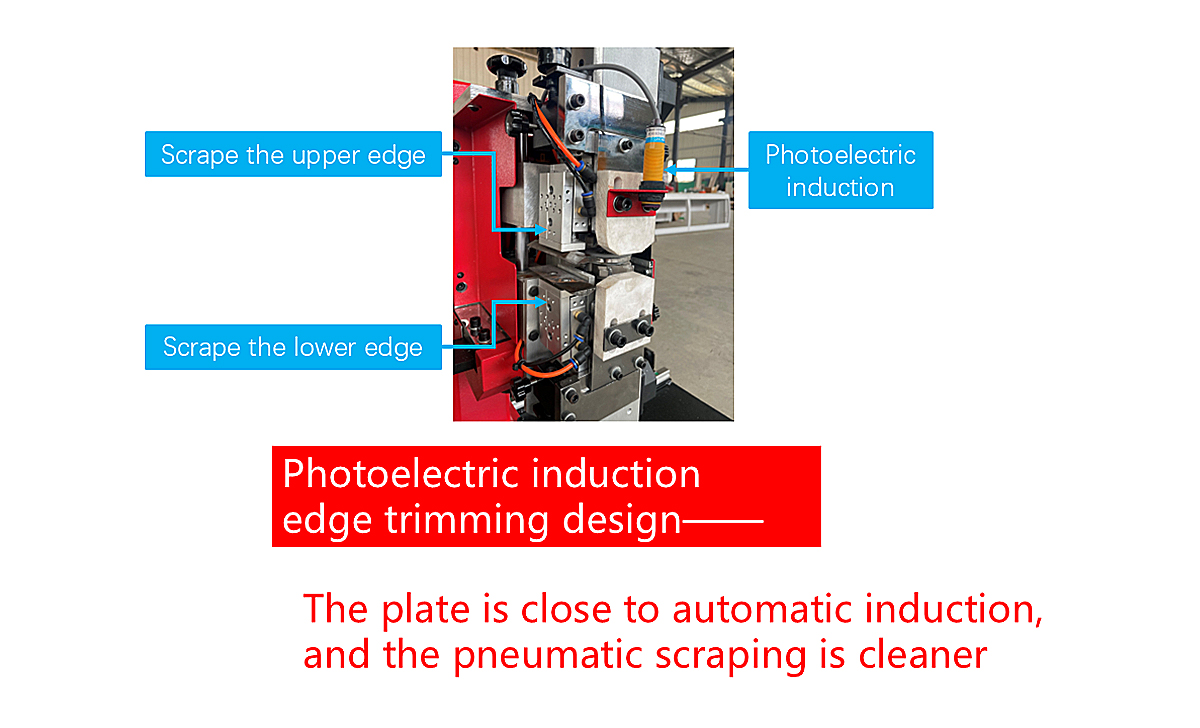

 Product advantages






|

 Product parameters



Model

XHW-10

Voltage

380V（Three Fire Wires+ One Zero Line）50HZ

Operating Air Pressure

0.6Mpa~0.8Mpa

Inverter

1.5KW One unit

Trim Motor

Changsheng 0.75KW Two sites

Trim R Angle

0.5R~2R Adjustable(Other R angles can be customized)

Maximum Trim Size

1.2M×2.4M

Minimum Trim Size

200mm×300mm

Packaging Dimensions

1.3M×1M×1.3M

Weight





Product Description
