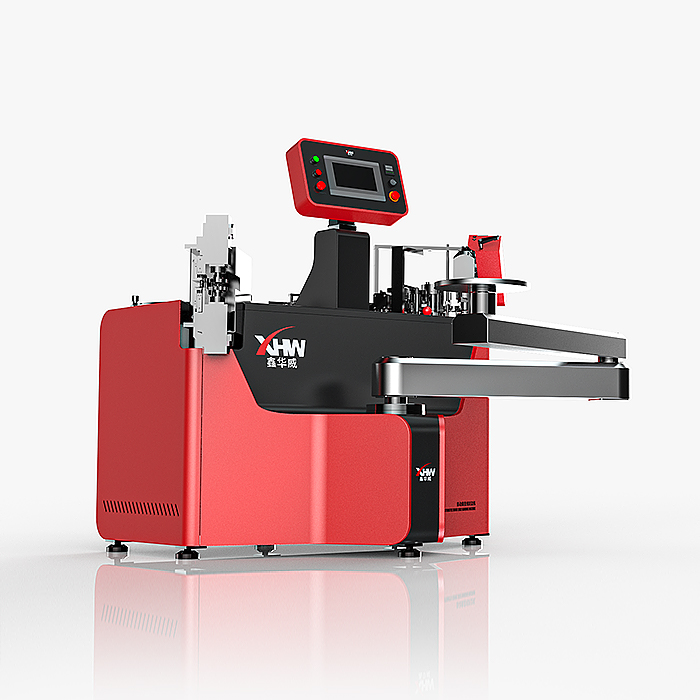

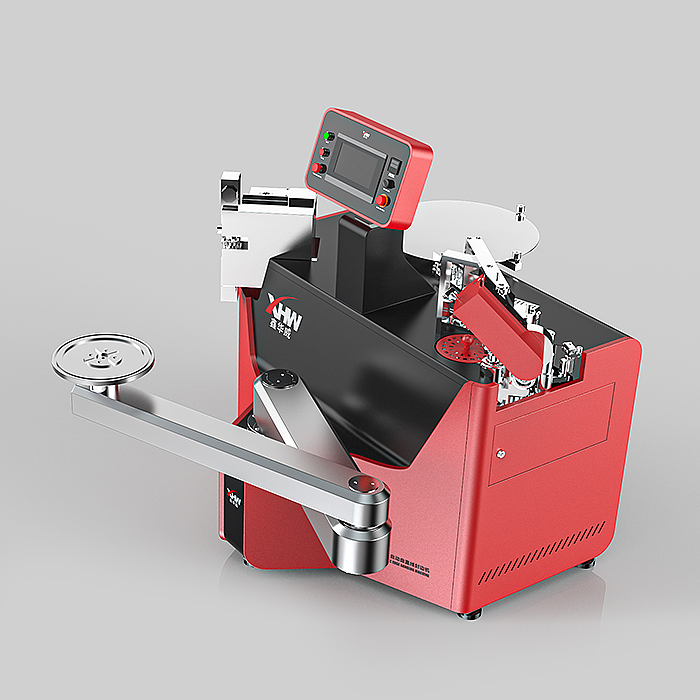

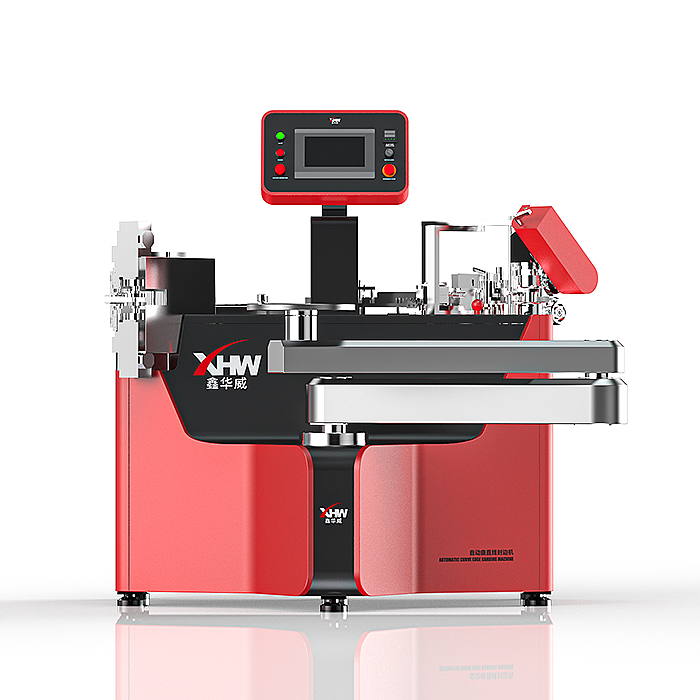

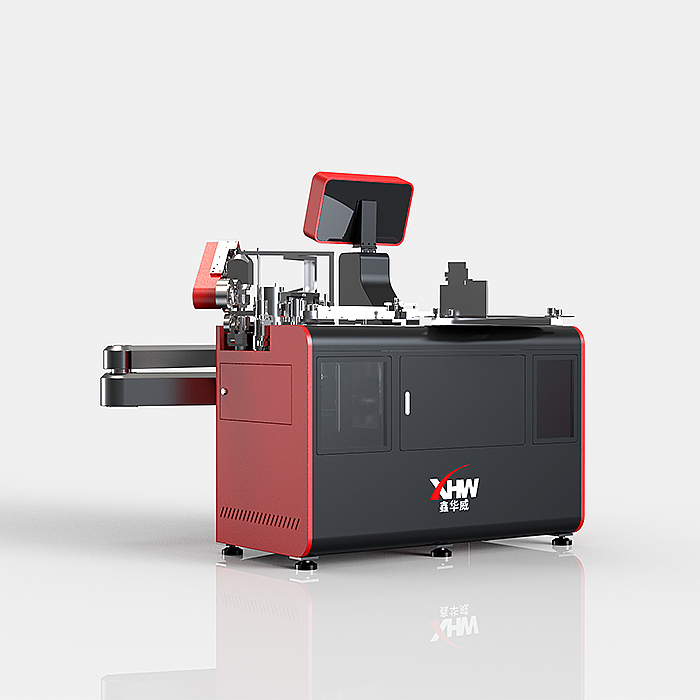

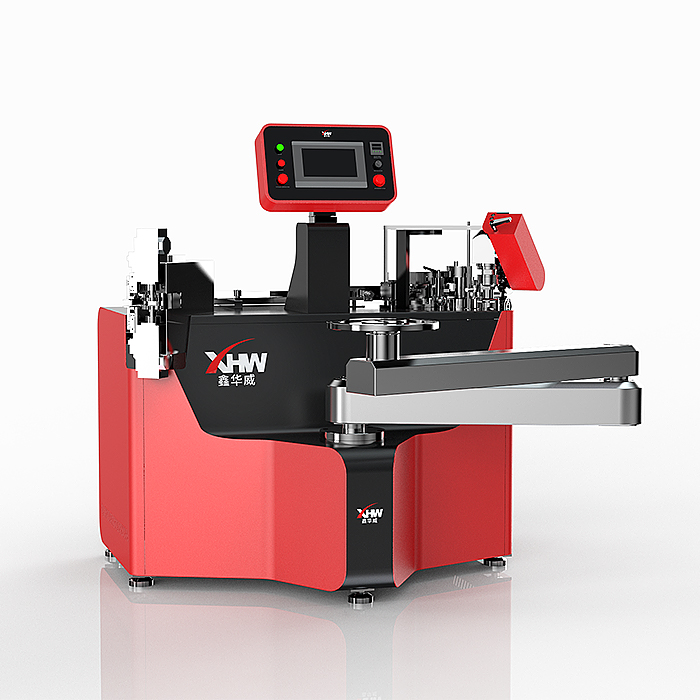

Model | XHW-21 | Thickness of edge banding board | 9mm~50mm |
Voltage | 380V（Three Firewires+One Zero Line)50HZ~60HZ | Edge banding thickness | 0.6mm~3mm |
Pressure | 0.6Mpa~0.8Mpa | Edge sealing speed | 5M~8M/min Infinite Speed Regulation |
Maximum installed power | 4KW | Trimming the R-corner | 0.5R~2R Adjustable (Can customize other R angles) |
Glue pot capacity | 1.5KG | Hot melt adhesive | High/Medium/Low Temperature P.S:We can customize a upper glue pot for you to connect with a PUR glue machine |
Temperature for using the glue pot | 80℃~220℃ | Edge banding material | PVC,ABS,Melamine,Customized wooden veneer |
Operating System PLC | Display Control | Maximum edge size | 1.2M×2M |
Docking control system | OMRON | Minimum edge size | 200mm×300mm |
Frequency converter | One 0.75KW and One 1.5KW Each（Sanmen Taili） | Packaging size | 1.4M×1.3M×1.7M |

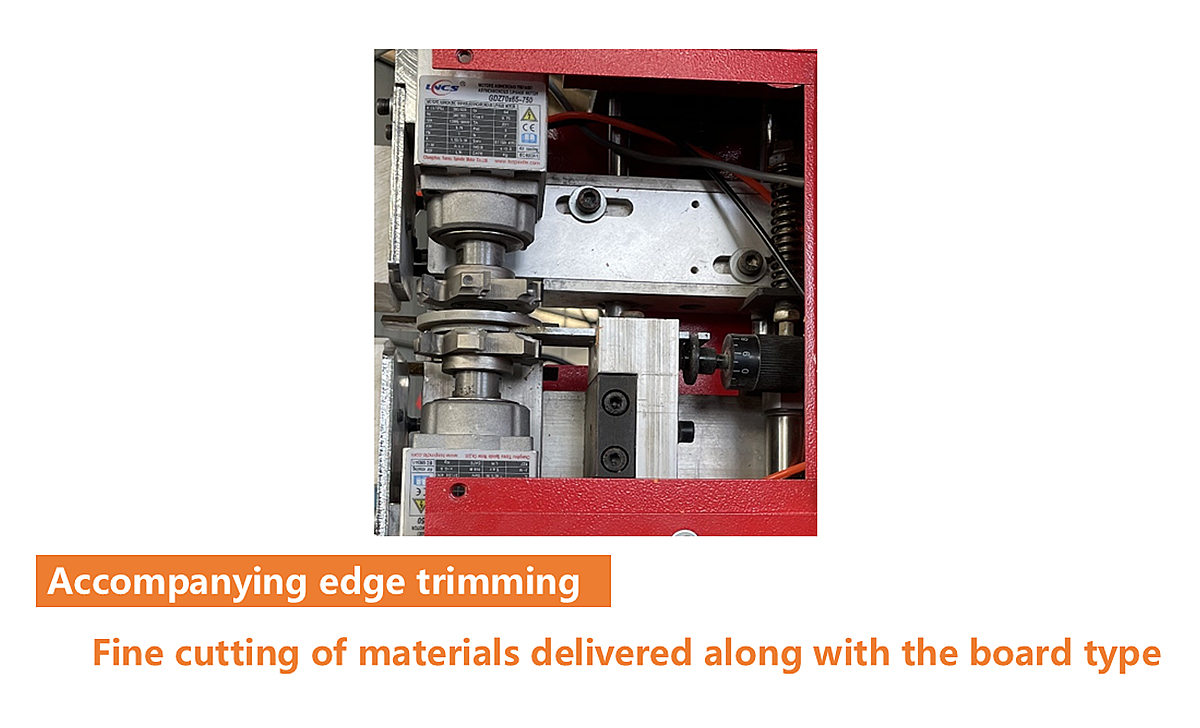

Edge trimming motor | Changsheng 0.75KW Two Units | weight | 520KG |
