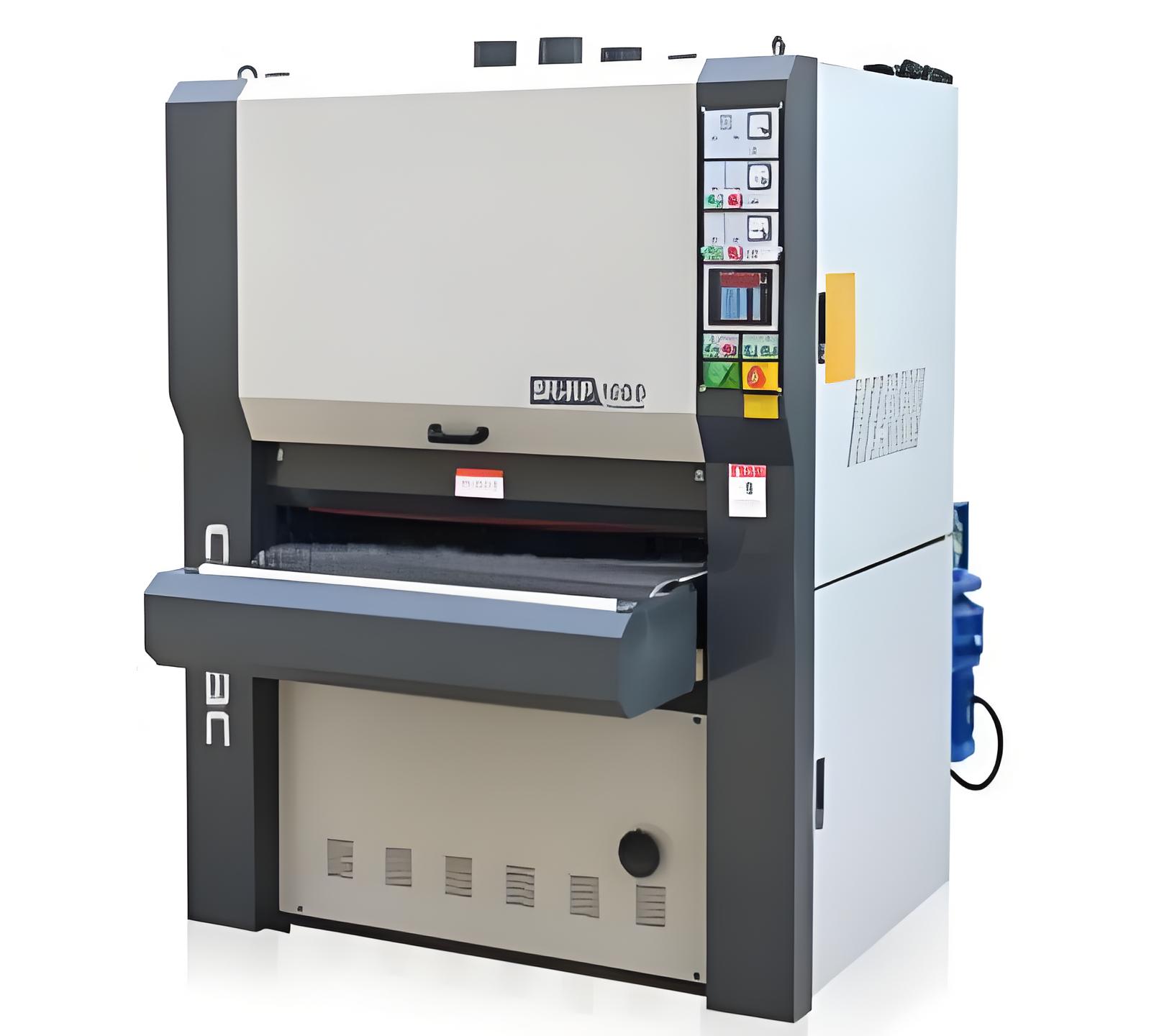

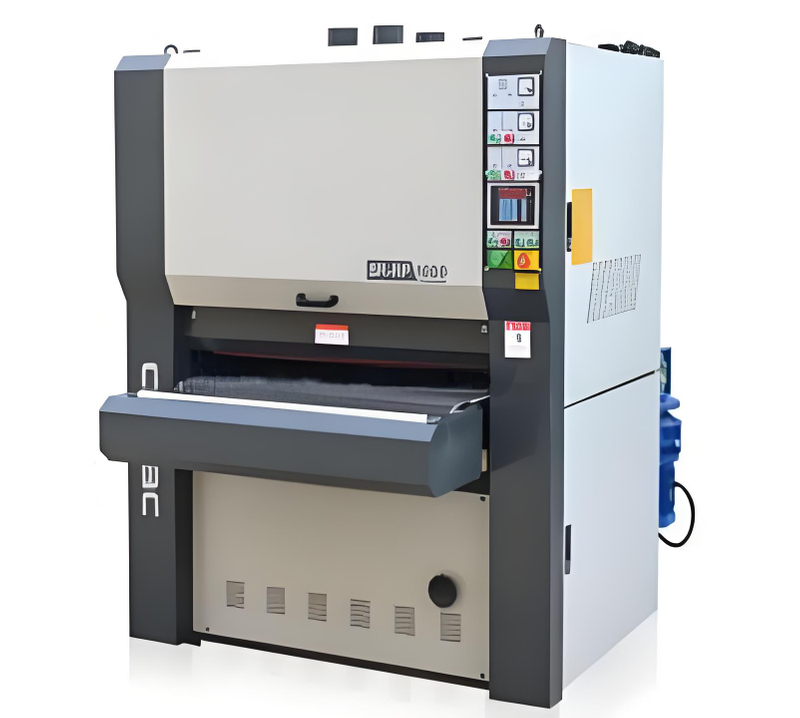

Product Overview
The frame is welded with iron square tubes, making the body stable and processing more reassuring

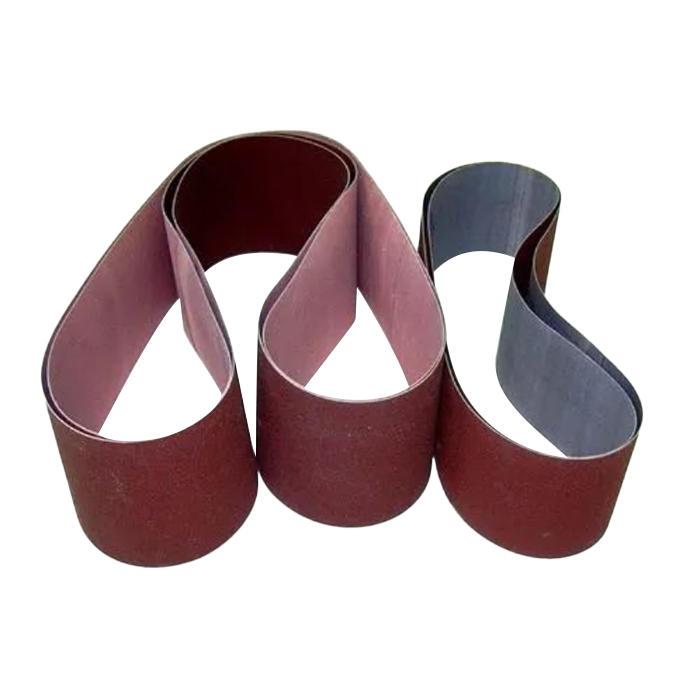

The sand frame is designed with a tensioning cylinder and a sand belt movement device to ensure the stability of the sand belt during the processing
Adopting a dual sand frame design for more precise processing; Belt type transmission structure, stronger power

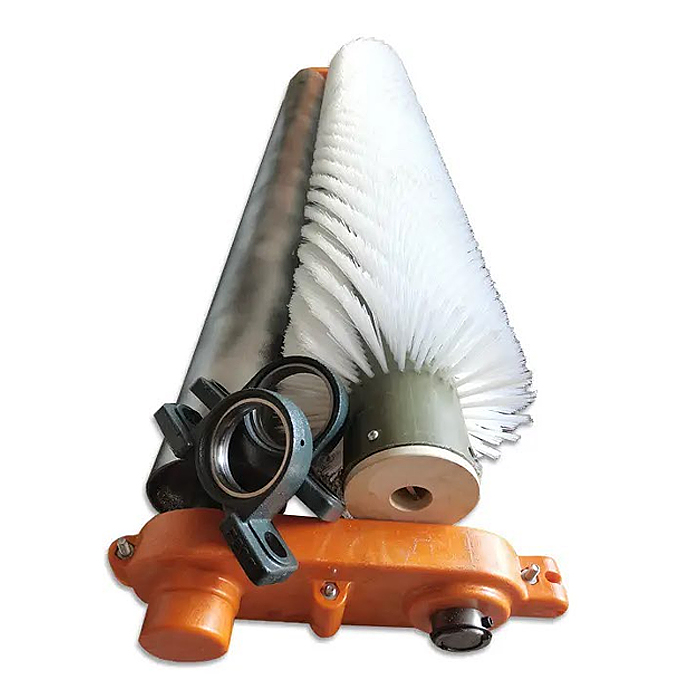

Each sand roller and cleaning roller is equipped with a powerful dust suction device, and grinding dust is sucked away by the suction port to reduce processing dust pollution
The discharge port adopts a cleaning hub design to further clean the residual floating ash and residue on the surface of the materials
|
Product parameters
Processing width | 30mm~1000mm | Transmission speed | 5M~25M/min |
Shortest processing length | 350mm | Belt size | 1020mm×2000mm |
Processing thickness | 2mm~110mm | Working pressure | 0.6Mpa~0.8Mpa |
Total power | 27.87KW | Vacuum pumping speed | 25M/s |
Power of the first sand rack | 15KW | Overall dimensions | 1.6M×2M×1.9M |
Power of the second sand rack | 11KW | Weight | 2000KG |
