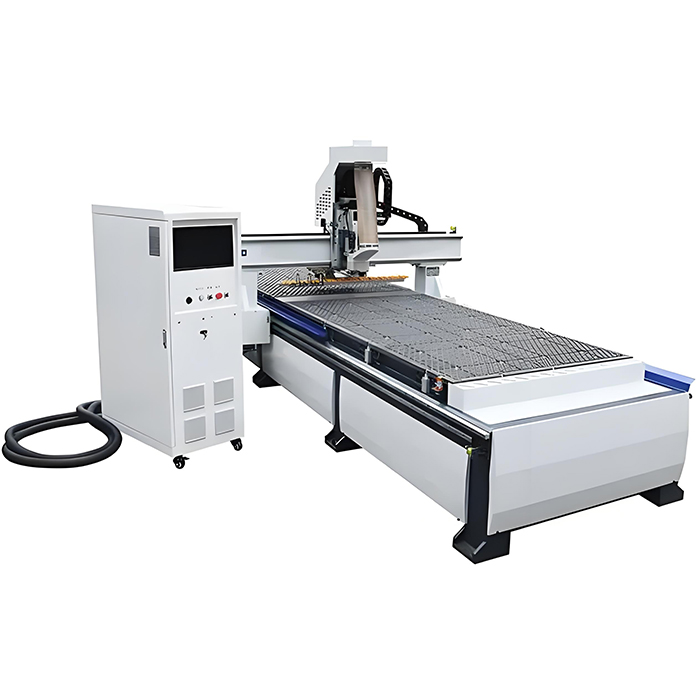

XHW-Z12 Straight line tool changing cutting and machining center

Availability:
Quantity:
Inquire Add to Basket

Woodworking Cutting Machine
More >>
Sliding Table Saw
More >>
Sander
More >>
Product Description

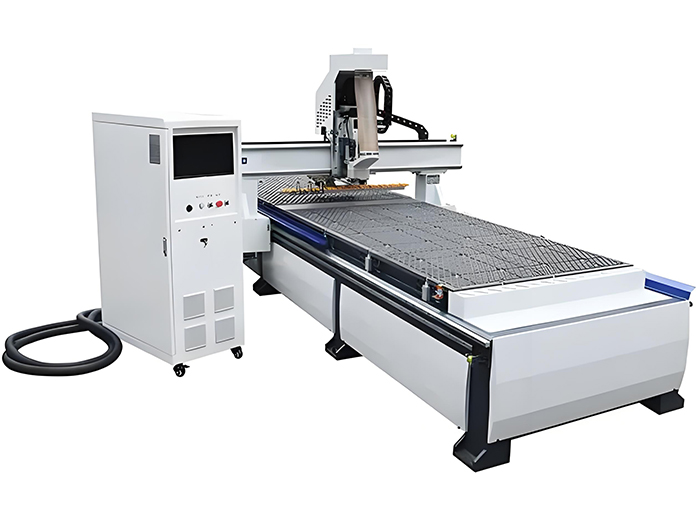

细节图

|

 Product Overview


  • The overall body structure adopts a gantry design to ensure stable operation of the equipment

  • Adopting a servo motor drive system, the X, Y, and Z axes of the equipment are all driven by gears and racks, which improves the operating efficiency and cutting accuracy of the equipment, thereby enhancing output efficiency

  • Using direct exhaust for tool changing is convenient and fast, and multiple processes can be easily solved with one spindle motor during the cutting proces

|

 Product parameters

Processing dimensions

1200mm×2800mm

Empty line speed

60M/min

Spindle power

9KW

Processing speed

25M/min

Working pressure

0.6Mpa~0.8Mpa

Frequency converter

11KW

working voltage

380V（Three-phase electricity）50HZ

Packaging size

4M×2.2M×2.3M










Product Description

RELATED PRODUCTS

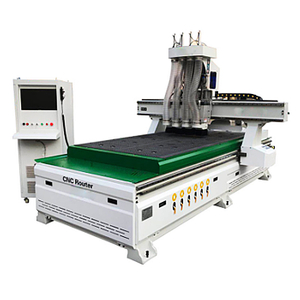

XHW-Z28 Four process tenon groove cutting
