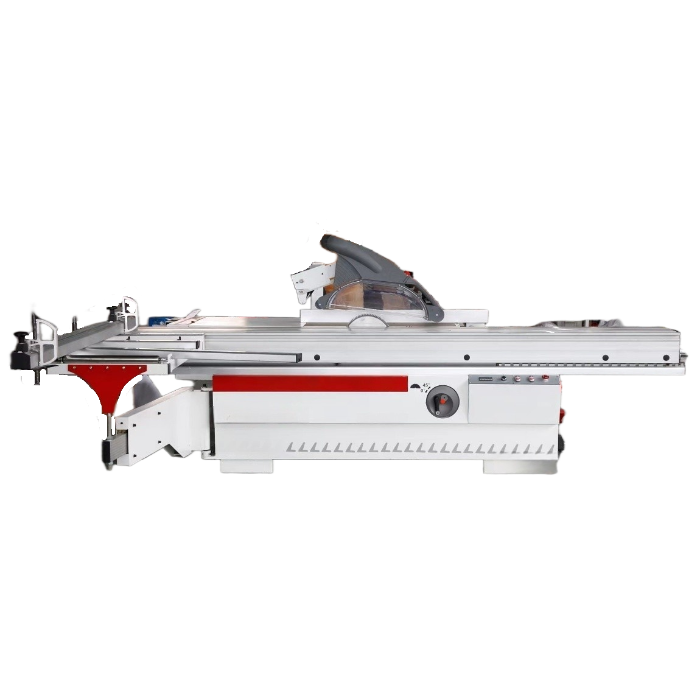

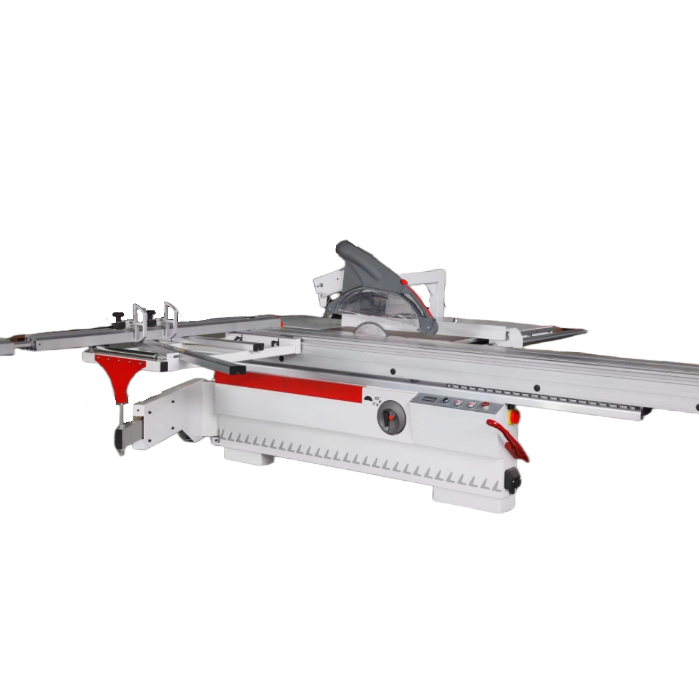

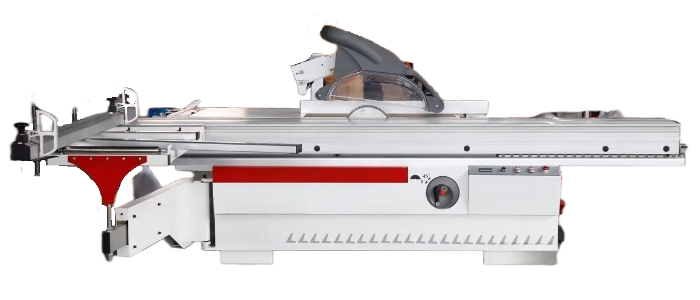

XHW-45G Sliding Table Type Push Table Saw(High & Customized Version)

Customize the length of the push table
Customize the saw blade size
Customize the length of the push table
The cutting motor rotates at 45°

Product Description

XHW-45G-8

|

Product Overview

Double adjustment of main saw blade tilt and marking saw blade tilt, suitable for scenarios with inclined surface requirements for sheet metal

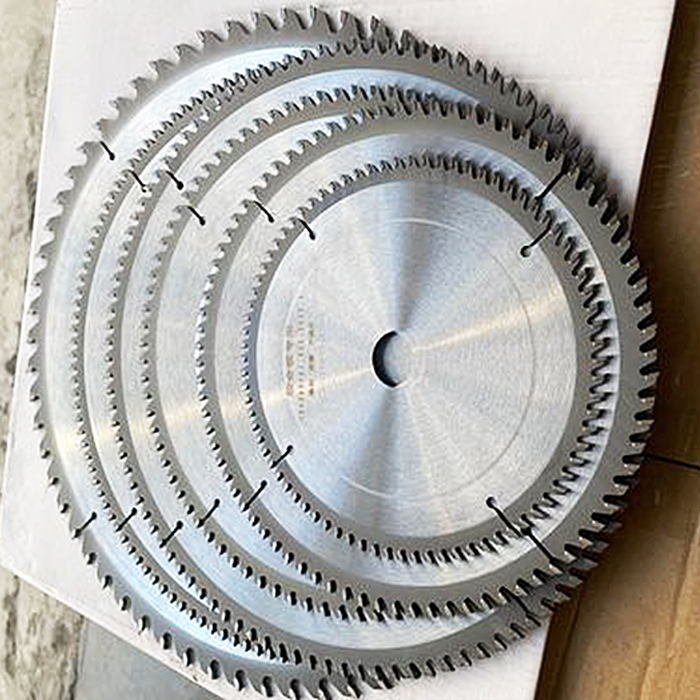

The main saw blade can be adjusted up and down, and the saw blade can be customized and replaced to meet the requirements for the thickness of sheet metal processing

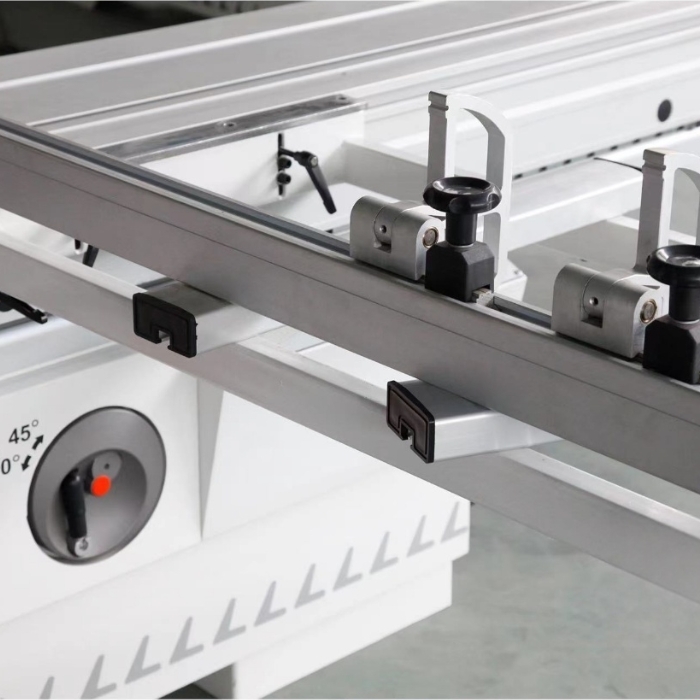

The push table guide rail can be extended as needed to meet the needs of processing large and ultra large plates
Optional saw blade dust protection cover, making the processing environment cleaner and ensuring production safet

|

Product parameters

Push table size	3200mm×435mm	Main saw speed	4000rpm/6000rpm
Cutting length	3200mm	Spindle diameter	30mm
Maximum cutting width	1200mm	Marking saw angle	0°~45°
Main saw blade diameter	300mm	Motor power	5.5KW＋1.1KW
Auxiliary saw blade diameter	120mm	Saw blade speed	8000r/min
Tilt of saw blade	90°~45°	Marking saw shaft	20mm
Main saw cutting height	75mm~80mm	Template axis	40mm~1400mm
weight	850KG
