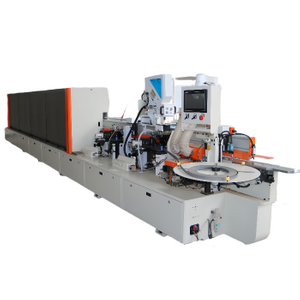

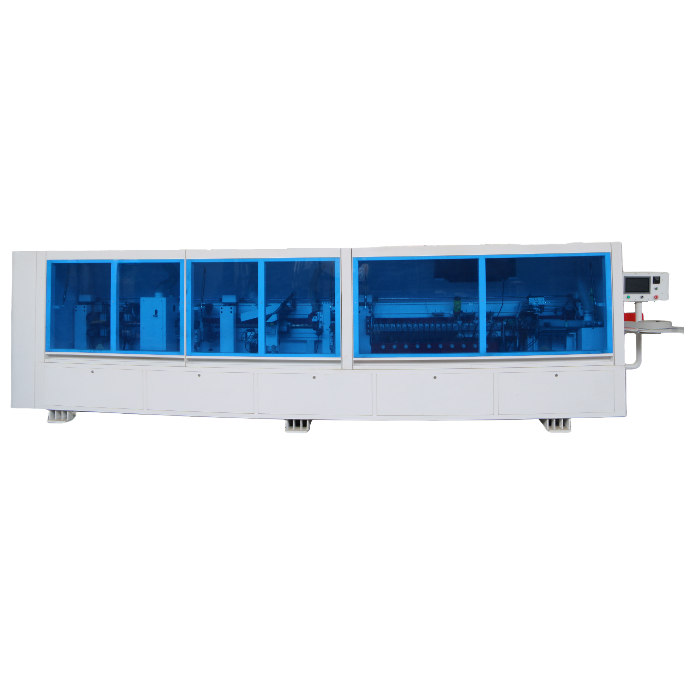

XHW-650 Full-automatic soft forming hand-less edge sealing machine

Product Description

|

Product introduction

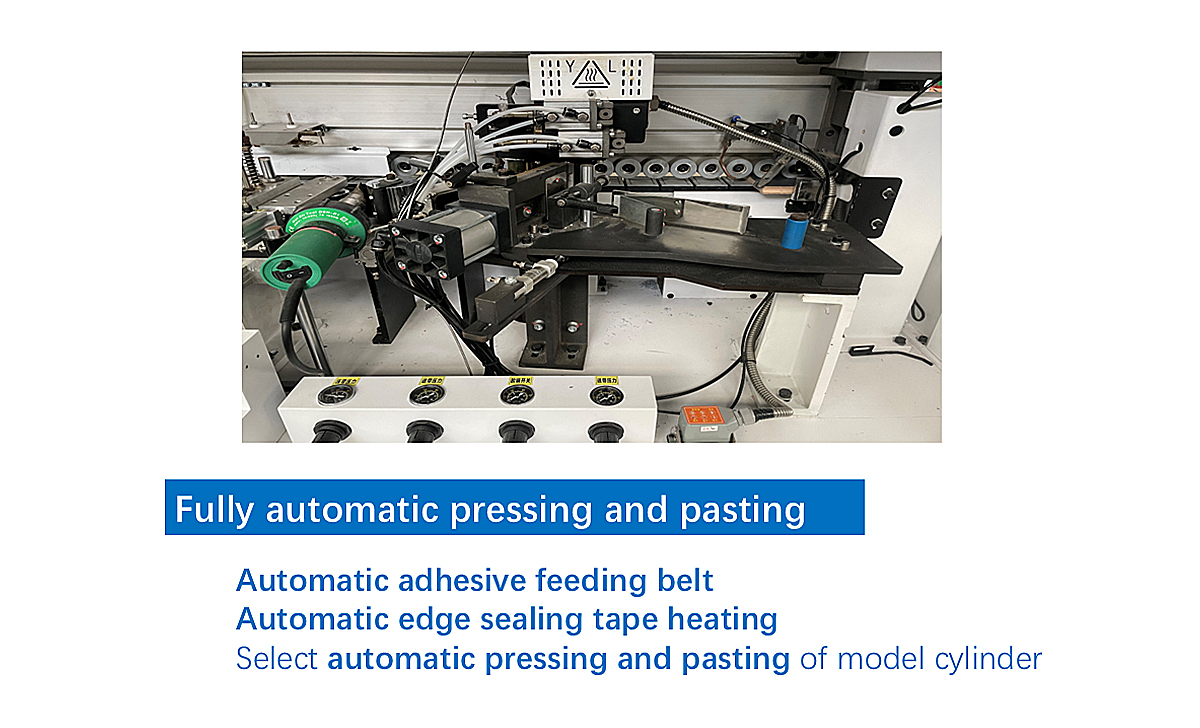

The product adopts full-automatic soft forming and pressing process,

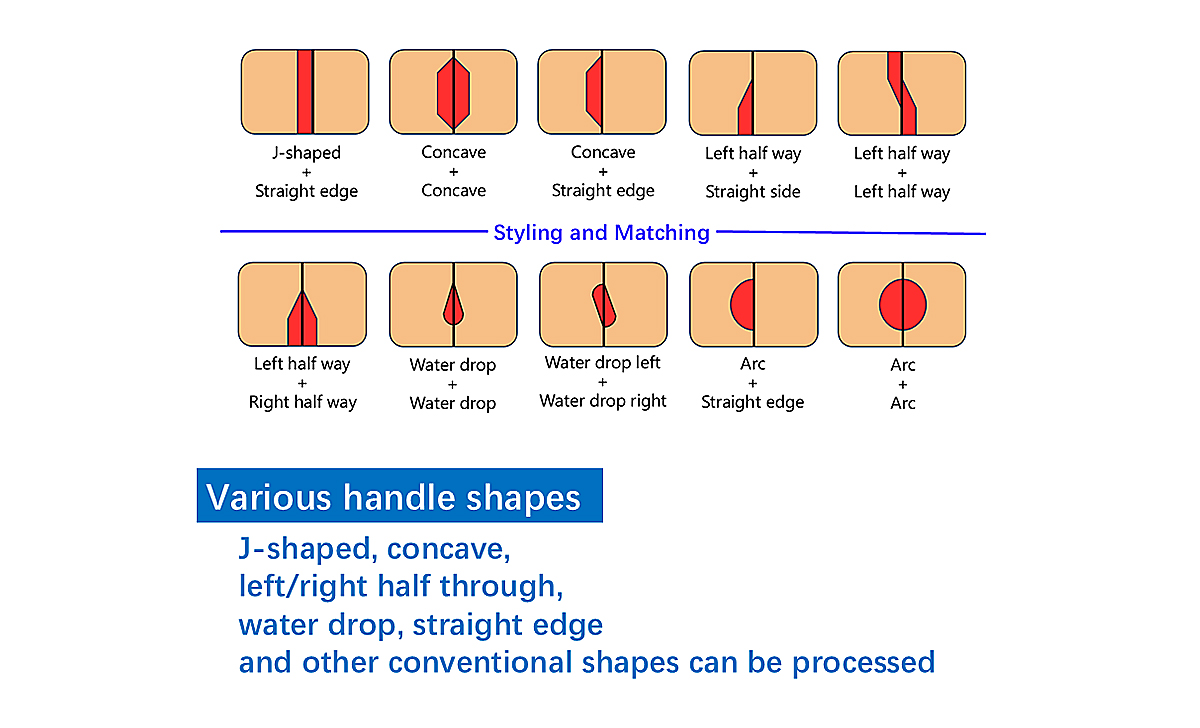

which can be used for various conventional shapes without handles,

and can be widely used in the field of all-household customized home decoration

|

Product use

For edge sealing and finishing of cabinet body, cabinet door handle, drawer handle

and other hand-free processes

|

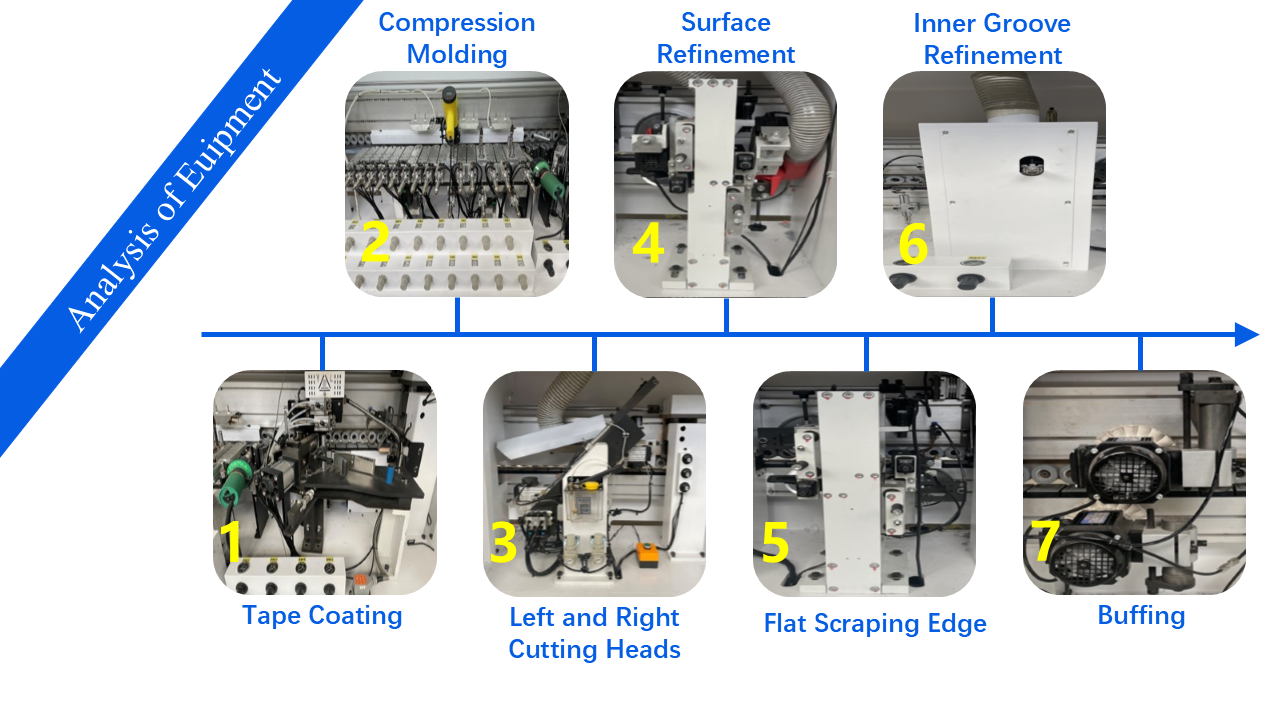

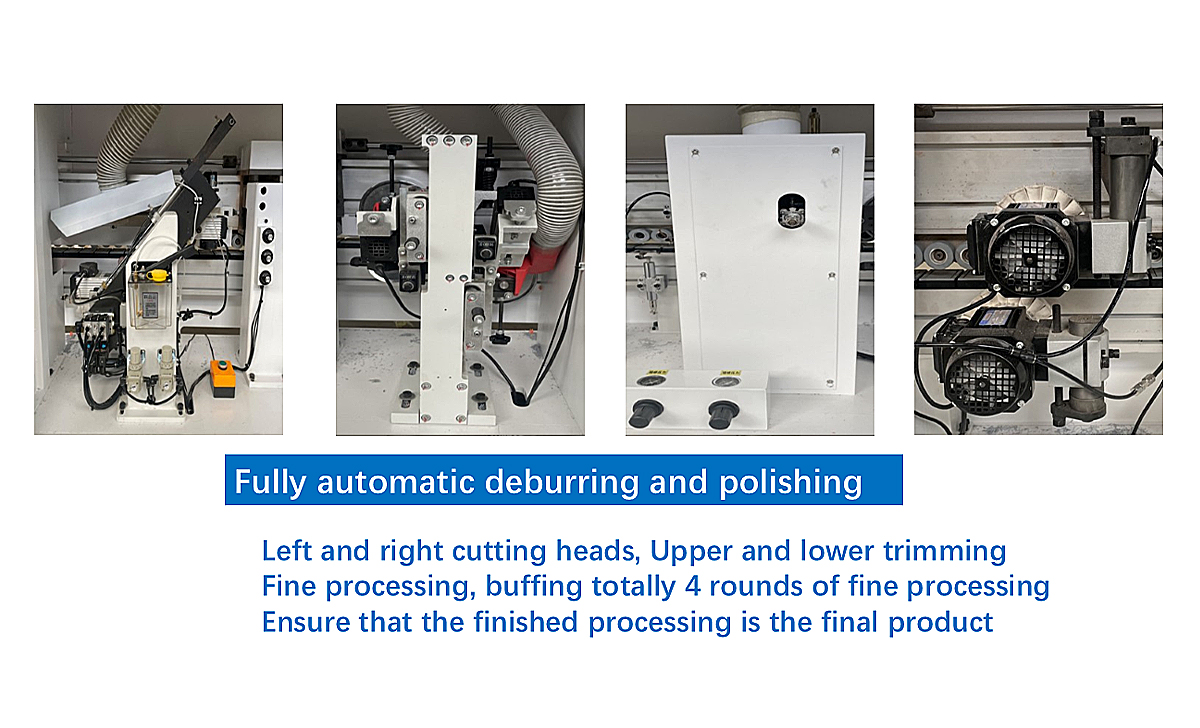

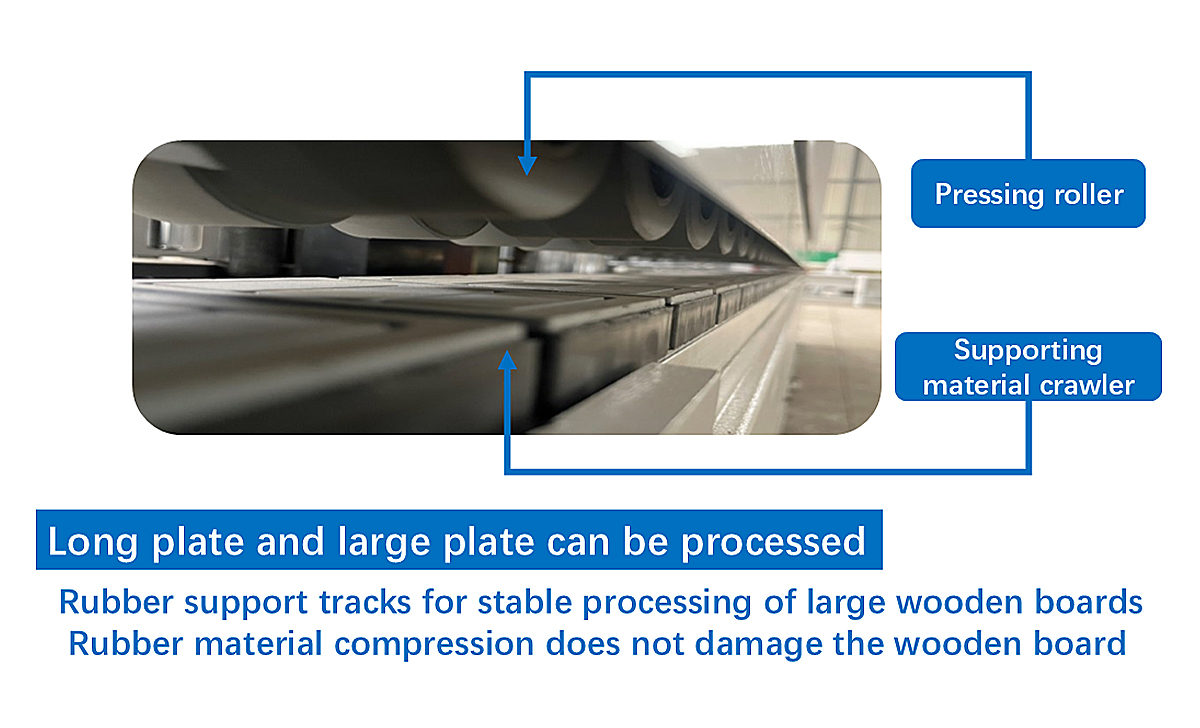

Product advantages





|

Product parameters

|

Product specifications, dimensions, parameters, etc.

Detailed Parameters
Model	XHW-650	Thickness of edge sealing strip	0.6mm/0.8mm
Voltage	380V	Plate Thickness	18mm~22mm
Voltage	Customizable 220V/415V/450V	Plate Thickness	18mm~25mm
Pressure	0.8Mpa	Speed of edge sealing	6M/min
Maximum installed power	7KW	Maximum edge sealing size	1.2M×2.4M
Operating system PLC	Display Control		1.2M×2.7M
electrical equipment	CHNT	Minimum edge dimension	150mm×150mm
electrical machinery	Changsheng SanmenTaili	Gluing method	Apply glue on the edge banding
Packaging dimensions	6.5M×1.9M×1.7M	Weight	2200KG
