The Impact of Different Adhesive Types and Viscosities on Edge Banding Performance

Introduction

Edge banding is a critical process in furniture manufacturing, ensuring durability, aesthetics, and moisture resistance. The quality of edge banding depends significantly on the adhesive used, with factors such as material compatibility and viscosity playing a vital role.

1. Adhesive Types in Edge Banding

Edge banding adhesives are primarily categorized into three types:

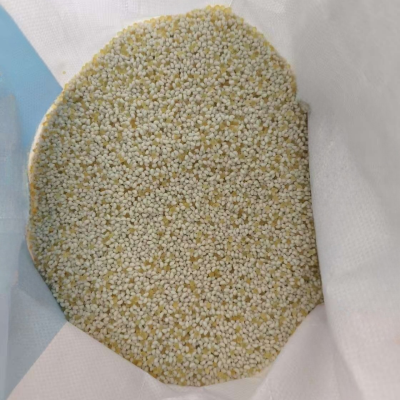

a. Hot-Melt Adhesives (EVA, PUR, and PO)

①EVA (Ethylene Vinyl Acetate):

Most common, cost-effective, and easy to apply.

Suitable for medium-density fiberboard (MDF) and particleboard.

Limited resistance to heat and moisture.

②PUR (Polyurethane Reactive):

Superior moisture and heat resistance due to curing via moisture reaction.

Ideal for high-humidity environments (e.g., kitchens, bathrooms).

Requires precise application due to irreversible bonding.

③PO (Polyolefin):

Enhanced thermal stability compared to EVA.

Used for heat-sensitive materials like PVC edge bands.

b. Solvent-Based Adhesives

Provide strong initial tack but are less eco-friendly.

Used for specialized applications where hot-melt adhesives are unsuitable.

c. Water-Based Adhesives

Eco-friendly but require longer drying times.

Limited use in industrial edge banding due to efficiency concerns.

2. The Role of Viscosity in Edge Banding

Viscosity determines the adhesive’s flow and penetration into the substrate.

Low-Viscosity Adhesives:

Spread easily, ensuring thin, uniform layers.

Best for porous materials like MDF, allowing deep penetration.

Risk of excessive penetration leading to weak bonding if not controlled.

High-Viscosity Adhesives:

Thicker consistency, suitable for non-porous materials (e.g., ABS, PVC).

Provide better gap-filling properties for uneven surfaces.

May require higher application temperatures for optimal flow.

3. Material-Specific Considerations

MDF & Particleboard:

Low to medium viscosity EVA or PUR adhesives work well due to porosity.

Solid Wood:

Requires flexible adhesives (e.g., PUR) to accommodate wood movement.

Plastics (PVC, ABS):

High-viscosity PO or PUR adhesives ensure strong bonding without material warping.

4. Common Edge Banding Defects Related to Adhesives

Poor Adhesion: Caused by incorrect adhesive type or insufficient viscosity.

Stringing: Occurs with high-viscosity adhesives at improper temperatures.

Edge Lifting: Due to low-viscosity adhesives failing to penetrate dense substrates.

5. Best Practices for Optimal Edge Banding

Match adhesive type to substrate material (e.g., PUR for moisture resistance).

Adjust viscosity based on material porosity and edge band thickness.

Maintain proper application temperature to ensure optimal flow and bonding.

Conclusion

Selecting the right adhesive type and viscosity is crucial for high-quality edge banding. While EVA remains popular for general use, PUR offers superior durability for demanding environments. Understanding material properties and adhesive behavior helps manufacturers achieve seamless, long-lasting edge banding results.
